Product Overview

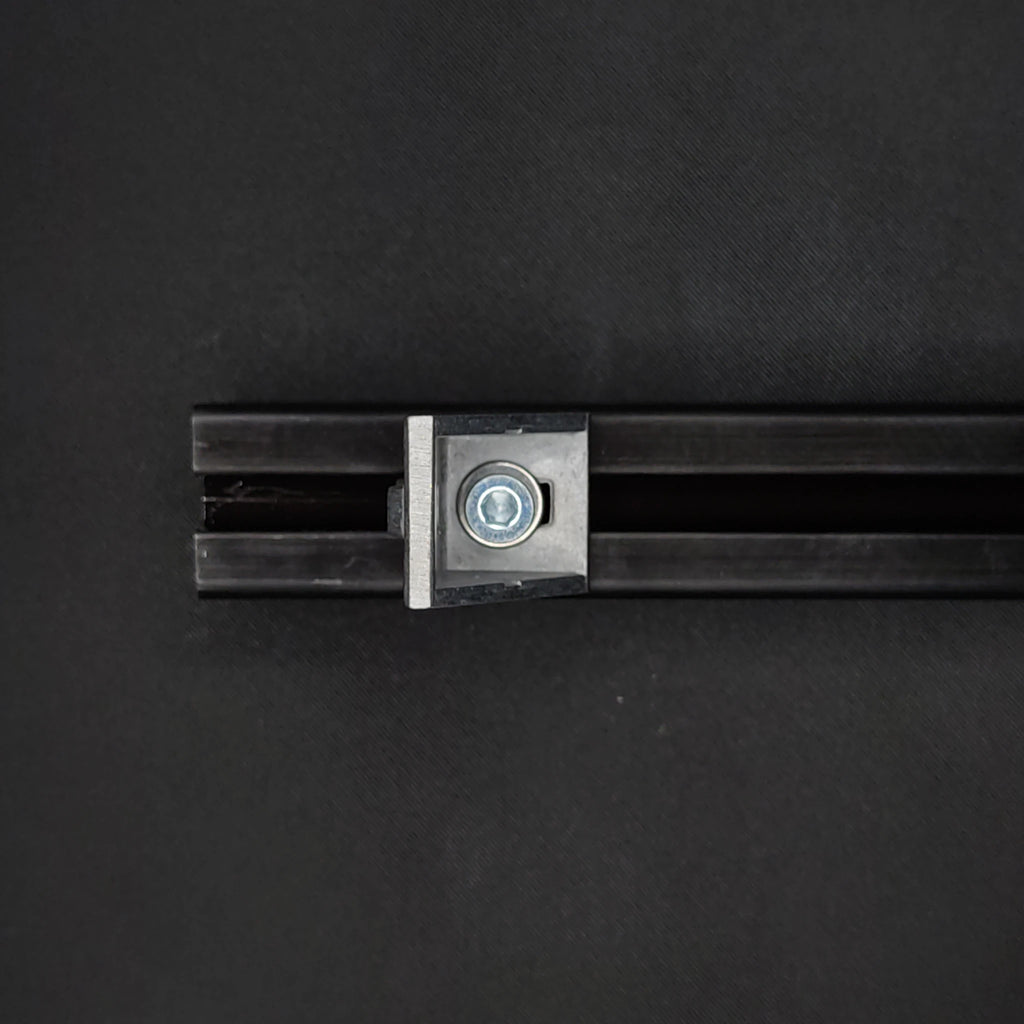

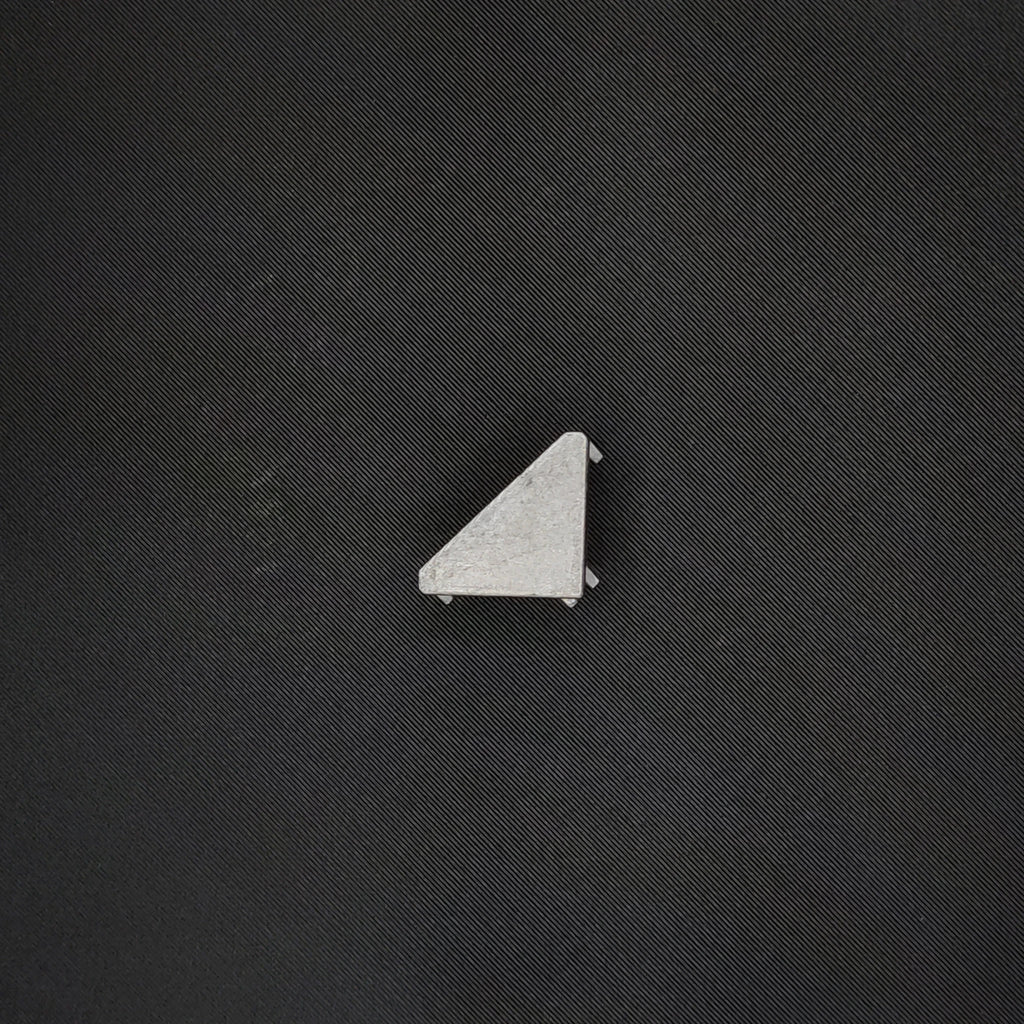

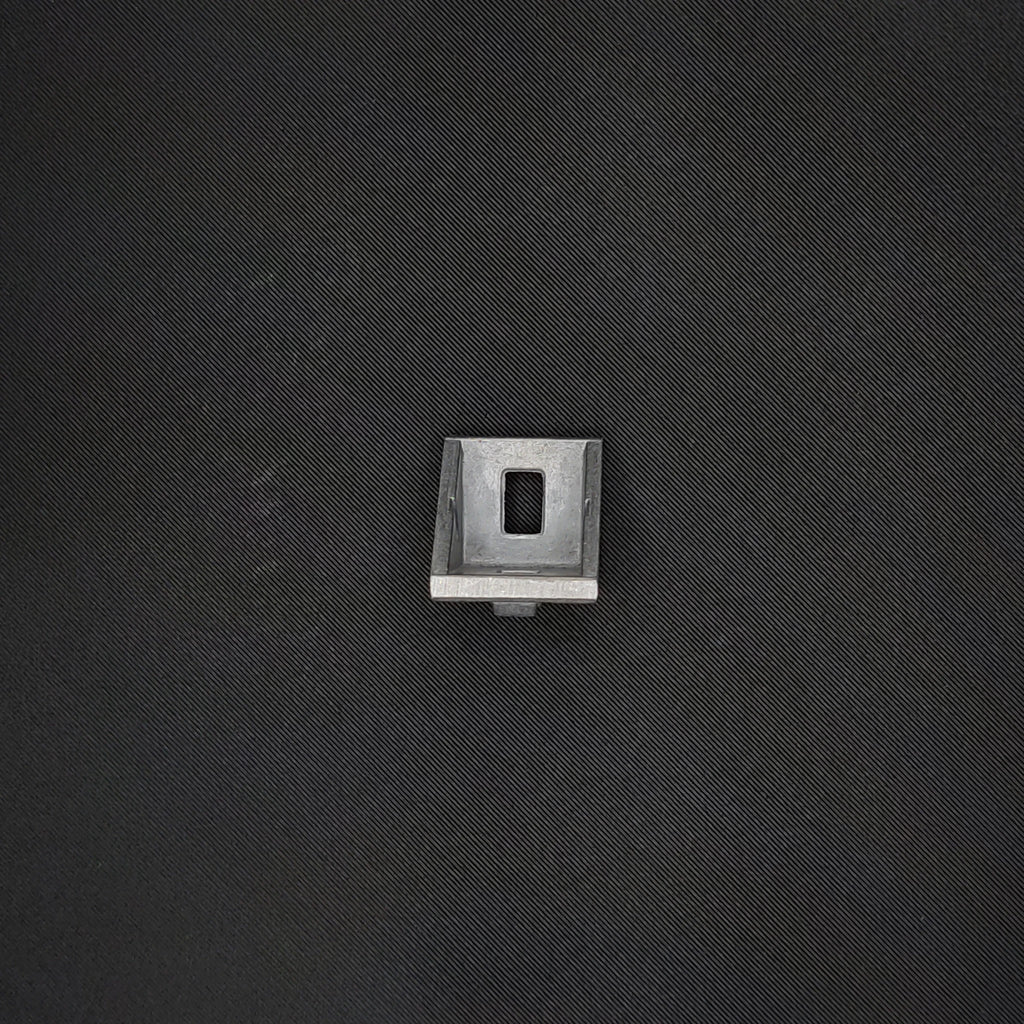

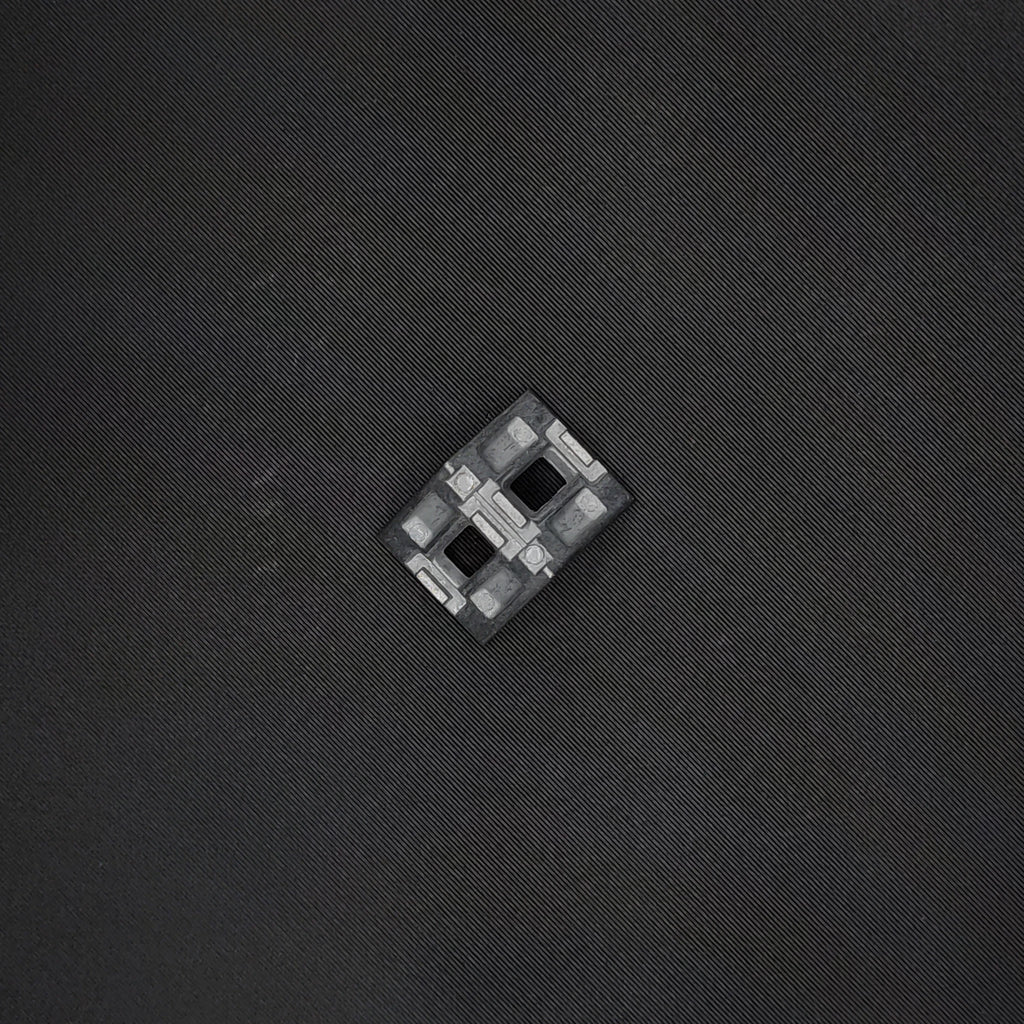

This heavy-duty Aluminum Connection Angle is engineered for the precise 90-degree joining of 20-series aluminum profiles. With a compact 18x18 mm footprint and a design optimized for 5 mm slots, it provides a high-strength, vibration-resistant connection for structural frames, industrial enclosures, and custom machinery builds.

Manufactured from high-grade die-cast aluminum, this bracket ensures long-term stability and perfect alignment without the need for complex machining or drilling of your profiles.

Key Specifications

Technical Features

• Industrial Durability: Constructed from die-cast aluminum for a superior strength-to-weight ratio compared to standard plastic or stamped steel brackets.

• Precision Fit: Specifically designed for "Slot 5" (5 mm groove) profiles, ensuring the bracket sits securely within the profile channel to prevent twisting.

• Universal Mounting: Features a 4.3 mm bore, making it perfectly compatible with M4 screws and hammer nuts.

• Clean Look: The plain industrial finish offers a professional appearance that matches standard silver aluminum extrusions.

Ideal Applications

• Precision Frameworks: Building rigid 90° corners for 3D printers and small-scale CNC machines.

• Industrial Guarding: Assembling safety enclosures and protective barriers for machinery.

• Modular Furniture: Creating custom lab benches, shelving units, or mounting rigs.

• Reinforcement: Adding secondary support to existing T-slot or I-type profile joints to eliminate frame flex.
