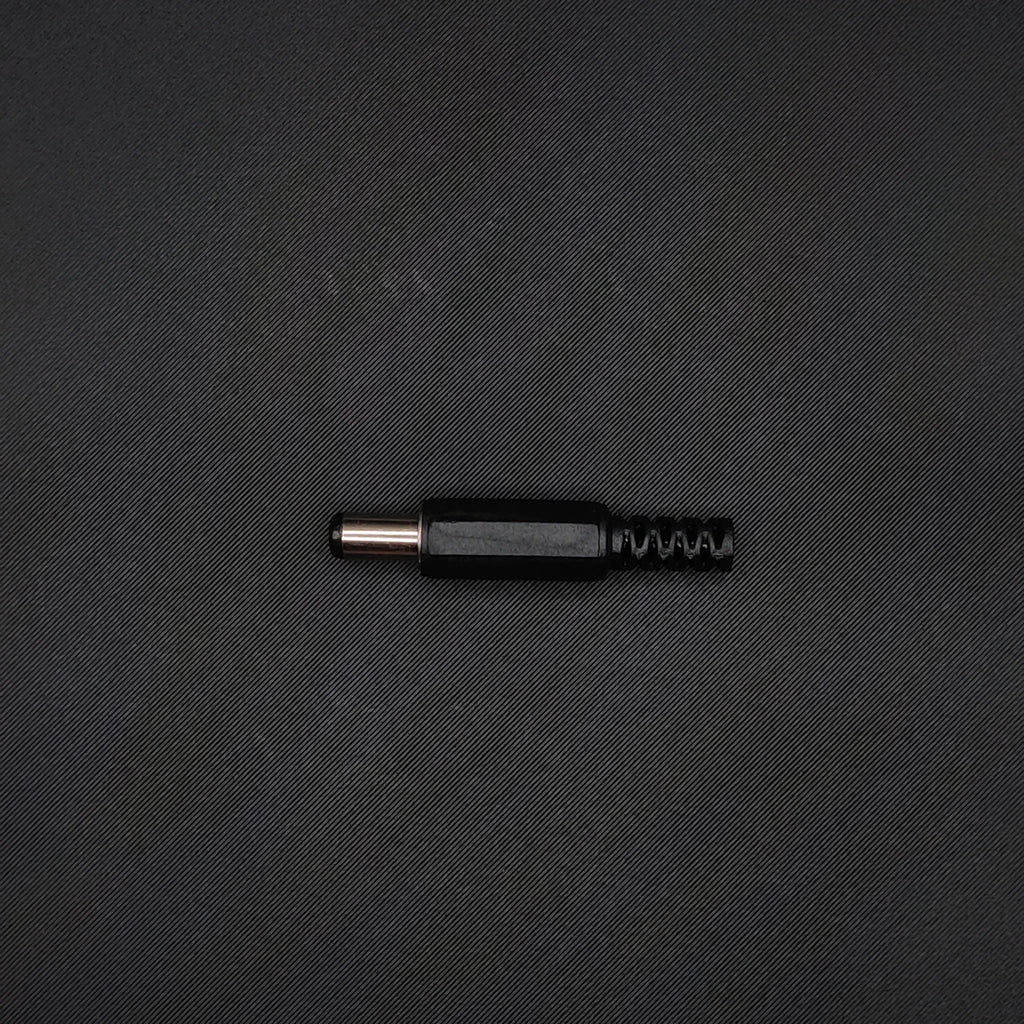

The VG18011A is the essential "missing link" for your custom power projects. This is the standard 2.1mm barrel plug used to create custom power leads, battery-to-project cables, or to replace a damaged end on a power supply. If you're building hardware, you need a handful of these in your bench drawer.

Features

• Universal Compatibility: This is the standard 5.5mm (outer) / 2.1mm (inner) format. It fits perfectly into Arduino Unos, DC barrel jacks, and most breadboard power supply modules.

• Rugged Solder Terminals: Features internal solder tabs designed to take a beating. The terminals are easy to tin and offer a solid mechanical connection for your wires.

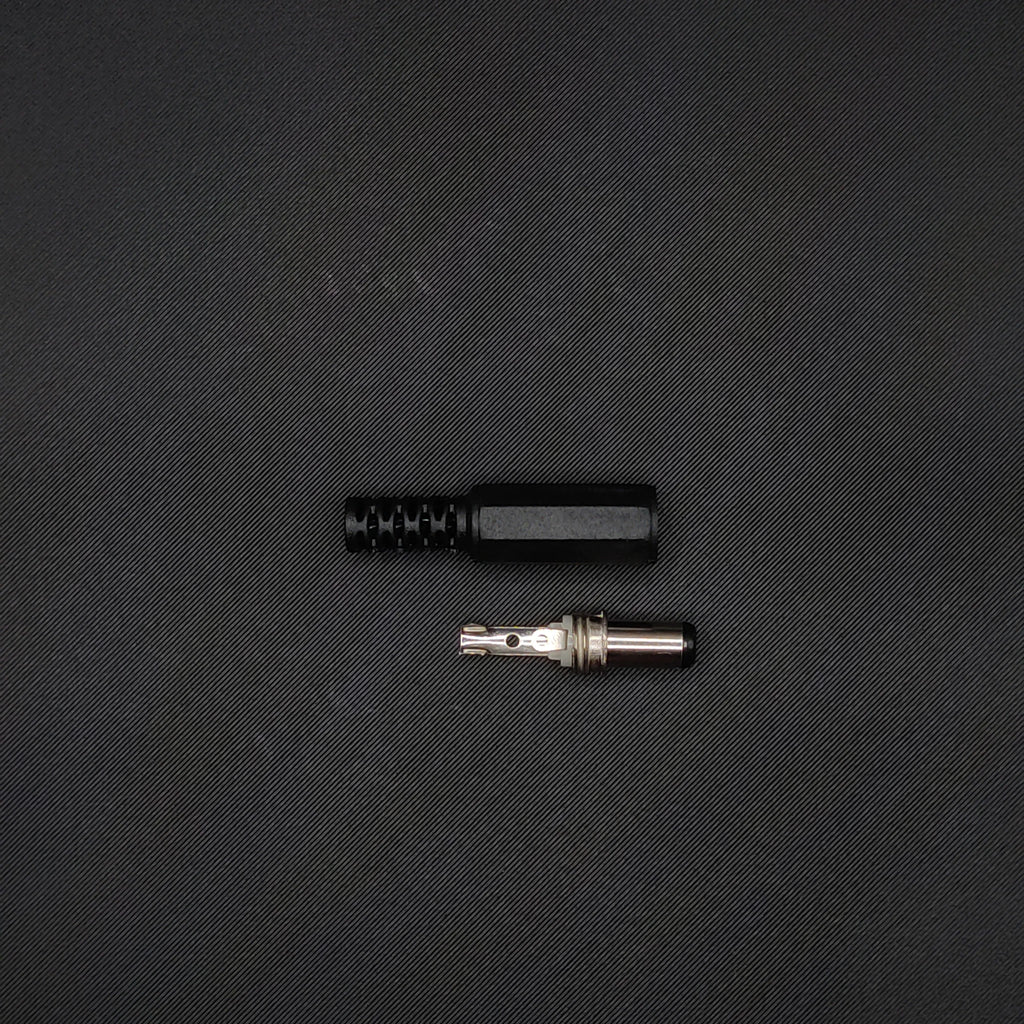

• Integrated Strain Relief: The screw-on plastic housing includes a flexible tail to prevent wire fatigue and snapping at the solder joint during frequent plugging/unplugging.

• Clean Design: A straight, slim profile ensures it fits into recessed power ports on custom 3D-printed enclosures without interference.

Technical Specifications

Bench Notes for the Build

• Solder Fast: To keep the center pin perfectly aligned, we recommend plugging the connector into a "sacrifice" female jack while soldering. This acts as a jig to keep everything straight if the internal plastic softens from the iron's heat.

• Cable Prep: This plug is best suited for 20AWG to 24AWG wire. If using thicker wire, ensure your heat shrink is thin enough to allow the outer shell to screw back on completely.

• Polarity Reminder: By convention, the shorter terminal is usually the Center Positive (+) and the longer terminal (which clamps the wire) is the Grounded Sleeve (-). Always verify with your multimeter!

Mechaxil Pro-Tip: Slide the plastic housing onto your wire before you solder the pins. We’ve all been there... soldering the perfect connection only to realize the shell is still sitting on the bench!
