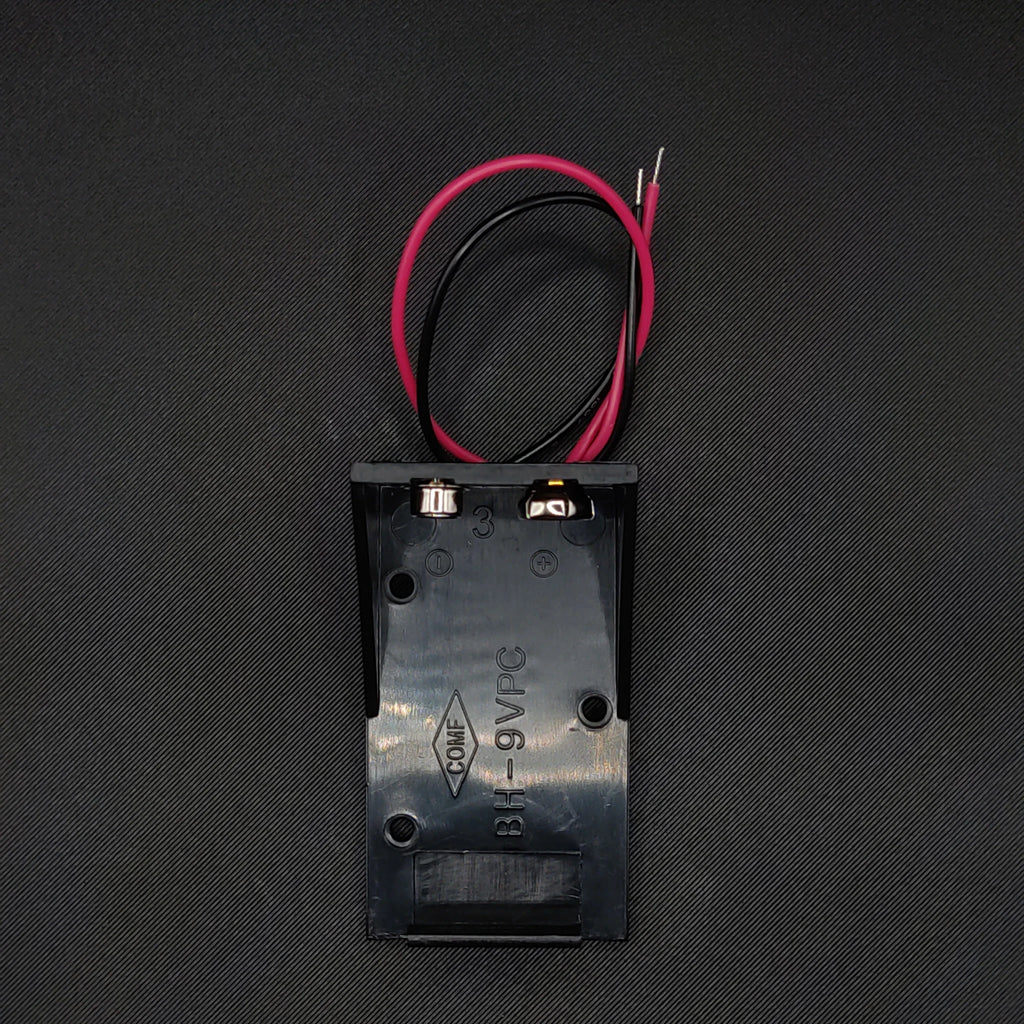

The BH-9V A is a no-nonsense, reliable housing for standard 9V batteries (6F22/6LR61). Built for integration into custom enclosures, handheld devices, or DIY robotics, this holder ensures your 9V power source stays secure even in high-vibration environments.

Features

• Universal 9V Fit: Perfectly sized for both primary alkaline (6LR61) and rechargeable NiMH or Li-ion 9V (6F22) cells.

• Secure Friction Fit: Designed with a tight tolerances to keep the battery locked in place, preventing accidental power loss during movement.

• Pre-Tinned Leads: Comes with 150mm (15cm) color-coded wire leads. The ends are ready for soldering directly to your PCB or connecting to a power distribution board.

• Low Profile: The slim, open-face design allows for easy battery swaps without needing to unscrew a battery door, making it ideal for prototypes that undergo frequent testing.

Technical Specifications

Bench Notes for the Build

• Strain Relief: The wires exit from the side of the holder. When mounting, ensure you leave a small "service loop" in the wiring to prevent the solder joints from being pulled if the battery is swapped aggressively.

• Polarity: The leads follow standard convention—Red for Positive (+) and Black for Negative (-).

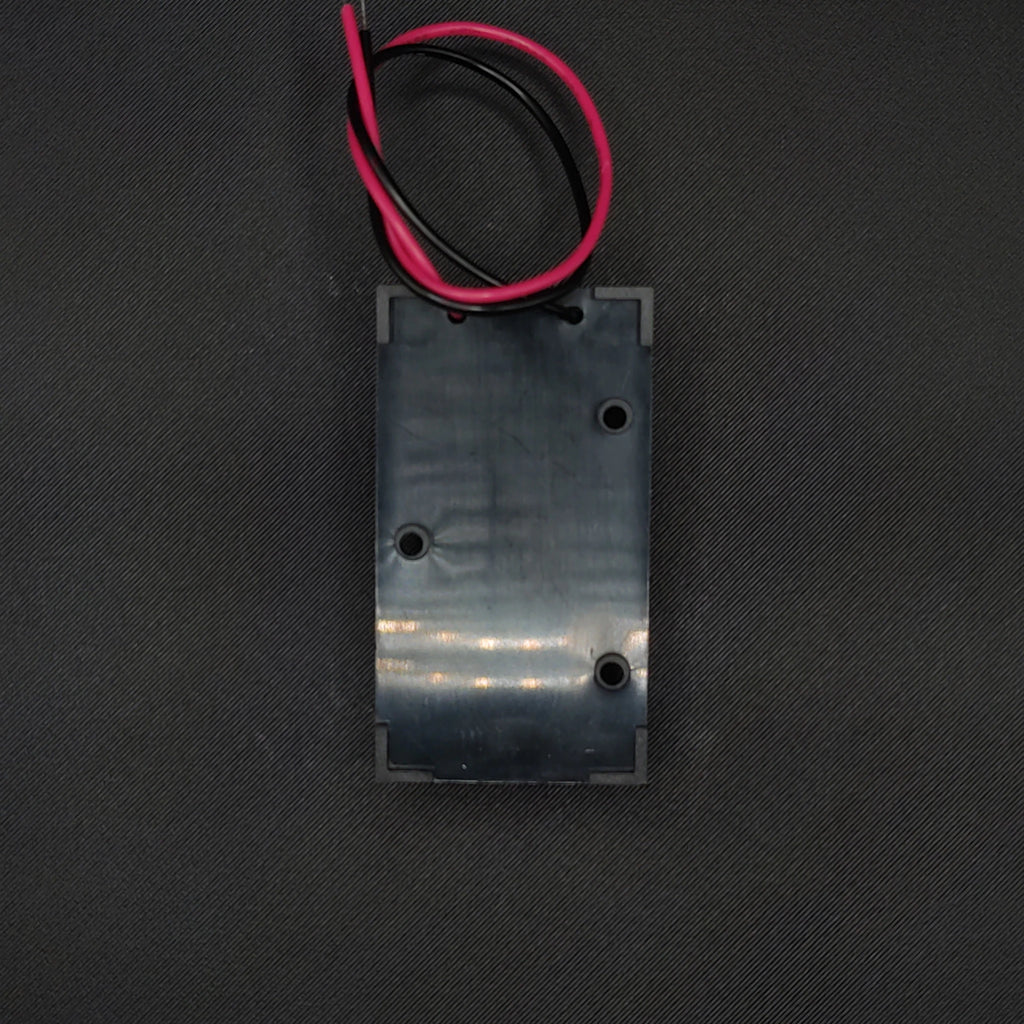

• Mounting Tip: The base features pre-molded mounting holes. Use flat-head M3 or smaller screws to ensure the screw heads don't interfere with the battery seating flat against the bottom.

Mechaxil Pro-Tip: If you’re using this in a mobile robot, add a small Velcro strap or a piece of foam tape to the bottom of the holder for extra security against vertical shocks.
