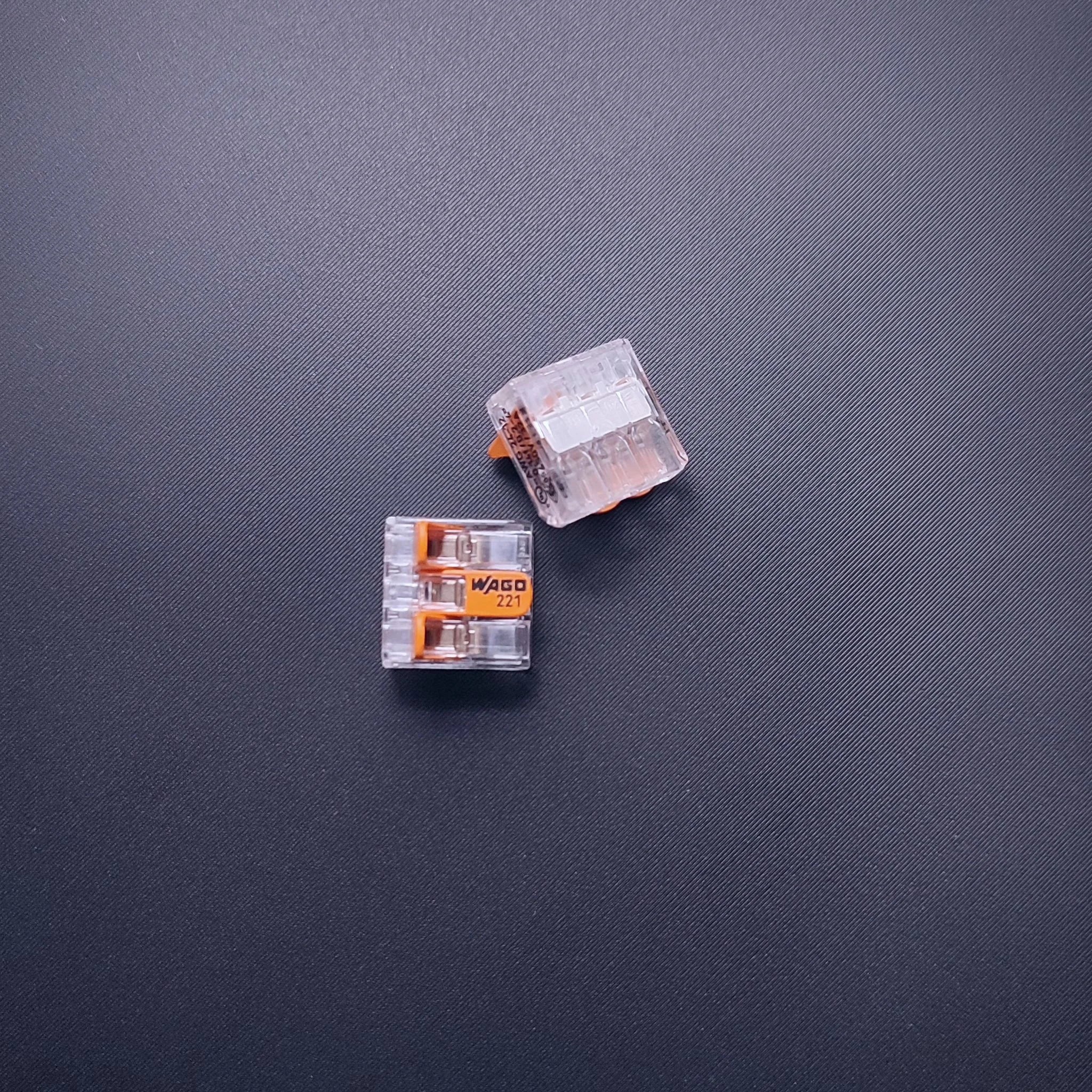

WAGO Lever Nut (3 Conductor)
219 Ft
Taxes included.
Pickup currently not available
Compact, reusable lever-actuated splicing connectors for solid, stranded, and fine-stranded copper conductors. Flip the lever, insert, click—done. Transparent body for visual check + built-in test slot.
Highlights
-
Tool-free, fast, reusable lever clamp
-
24–12 AWG (≈0.14–4 mm²) conductor range (type-dependent, see table)
-
Up to 32 A / 450 V (IEC); UL: up to 600 V, 20 A (model/standard dependent)
-
Compact “221” housing for tight junction boxes; clear shell for insertion check
-
Strip length: 11 mm (0.43″)
-
Max operating temp +105 °C (typ.)
Specs
| Property | Value |
|---|---|
| Series | WAGO 221 (compact lever splicing) |
| Conductor Types | Solid / stranded / fine-stranded copper |
| Conductor Size | 24–12 AWG (≈0.14–4 mm²) |
| Strip Length | 11 mm (0.43″) |
| Voltage / Current | IEC: up to 450 V / 32 A • UL: up to 600 V / 20 A |
| Housing | Transparent body, orange levers |
| Test Port | Yes |
| Temp (max) | +105 °C (typ.) |
What’s in the Pack
-
1 piece of WAGO Lever Nut
