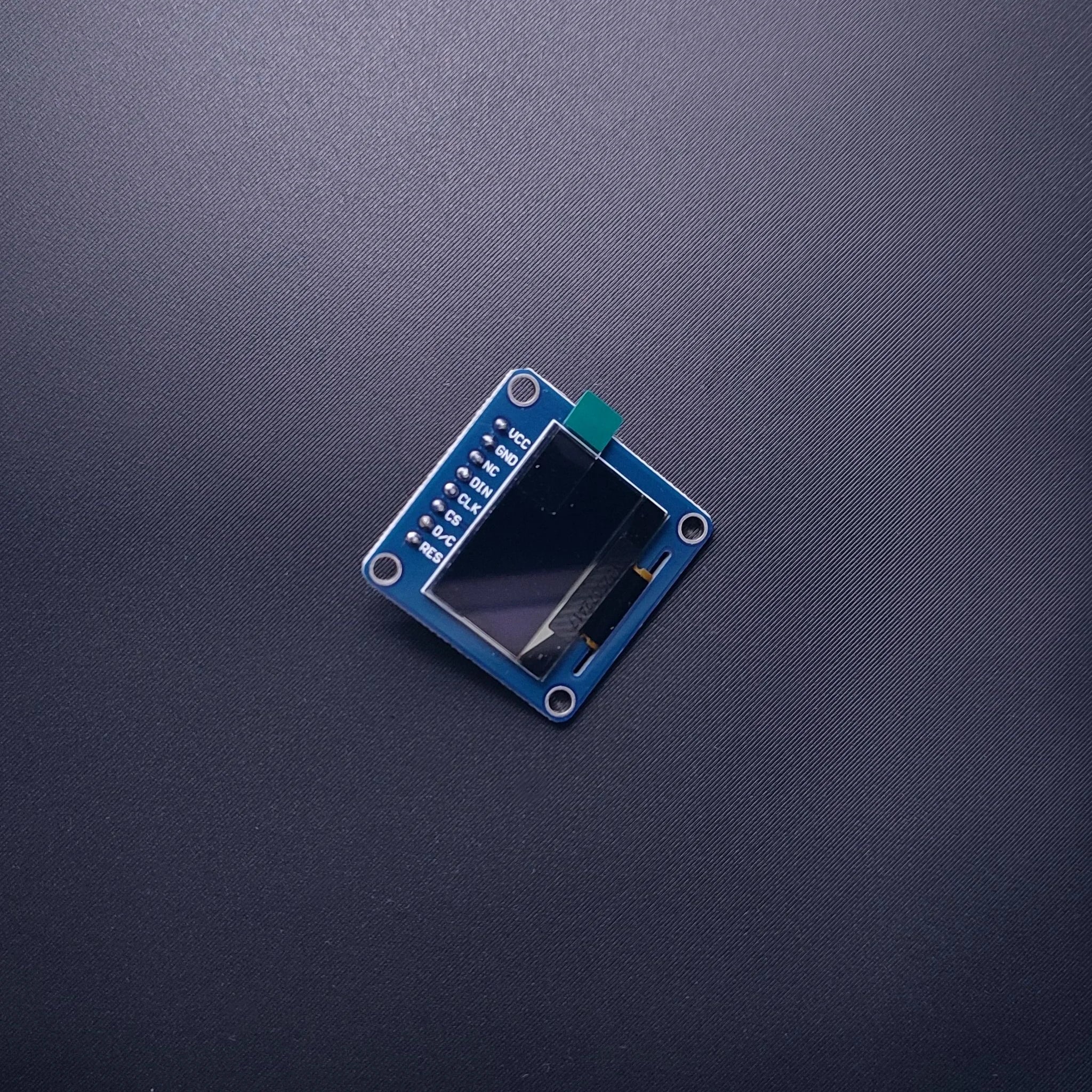

Waveshare 0.96" OLED (SSD1306, 128×64) Vertical
  • Waveshare 0.96" OLED (SSD1306, 128×64) Vertical
  • Waveshare 0.96" OLED (SSD1306, 128×64) Vertical
Waveshare 0.96" OLED (SSD1306, 128×64) Vertical

Waveshare 0.96" OLED (SSD1306, 128×64) Vertical

3.490 Ft
Taxes included.

Two-color yellow/blue 0.96" OLED with I²C/SPI on a compact breakout. This one has an angled pin header.

Highlights

  • SSD1306, 128×64 px, ~0.96" diagonal

  • Yellow/Blue split (top/bottom)

  • I²C or SPI selectable via solder options

  • 3.3–5 V supply friendly (onboard regulation/leveling)

  • Angled 8-pin header (easy breadboard viewing)

Specs

Property Value
Controller SSD1306
Resolution 128 × 64
Colors Yellow/Blue (two-zone mono)
Interface I²C, 3-wire SPI, 4-wire SPI (selectable)
Supply 3.3–5.0 V
Logic 3.3 V (5 V-host tolerant on board)
Viewing angle >160°
Board size ~33.5 × 33 mm
Header 1×8, angled

Pinout (8-pin)

Pin Function
VCC 3.3–5 V in
GND Ground
NC Not connected
DIN Data in (MOSI / SDA)
CLK Clock (SCLK / SCL)
CS Chip select (SPI)
D/C Data/Command (SPI)
RES Reset (active-low)

Interface Modes (BS jumpers)

Mode BS0 / BS1 Lines
I²C 0 / 1 SDA=SDA, SCL=SCL (CS/D/C not used)
4-wire SPI 0 / 0 MOSI, SCLK, CS, D/C, RES
3-wire SPI 1 / 0 MOSI, SCLK, RES (command/data encoded)

What’s in the Pack

  • 1× WSH-9085 0.96" OLED (A) module
